Servo Voltage Stabilizer Supplier, Industrial Stabilizer Manufacturer

We are Manufacturer, Supplier, Exporter of Servo Voltage Stabilizers, Industrial Stabilizers, Single Phase, Three Phase Servo Controlled Voltage Stabilizers. Our setup is situated in Pune, Maharashtra, India.Our Other Products : Servo Stabilizers, Servo Controlled Voltage Stabilizers, Voltage Stabilizers, Stabilizers, Static Frequency Converters, Frequency Converters, Static Converters, Isolation Transformers, Potential Transformers, Control Transformers

Servo voltage stabilizer is closed loop control mechanism which serves to maintain balanced 3 or single phase voltage output in spite of fluctuations at the input owing to unbalanced conditions.

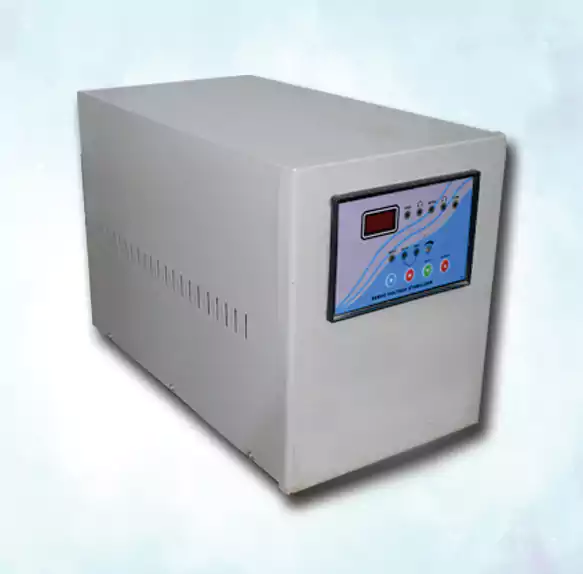

Single Phase Servo Controlled Voltage Stabilizers.

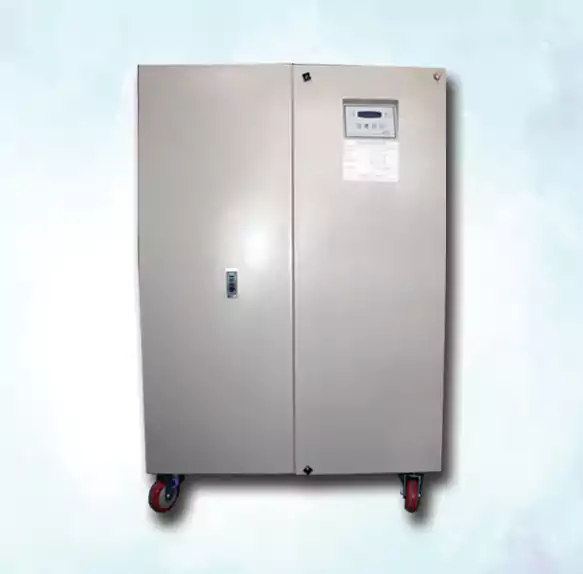

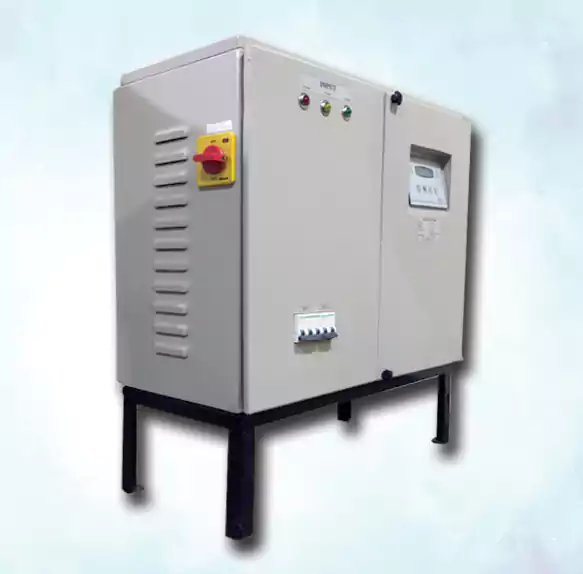

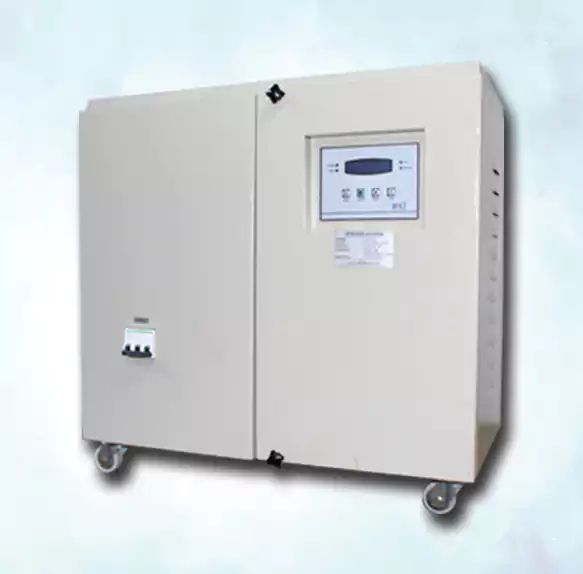

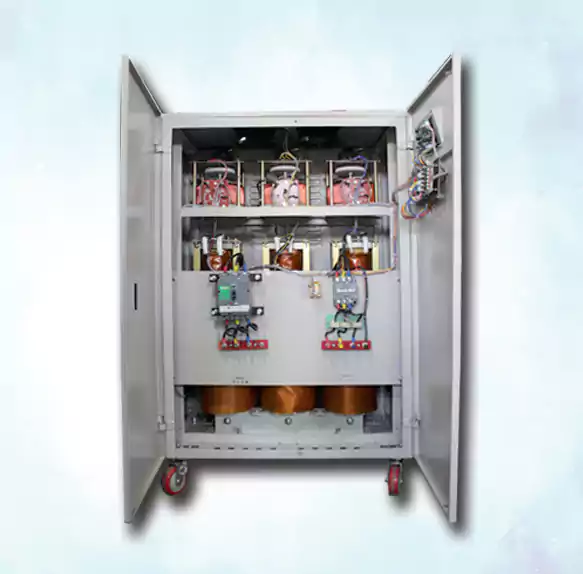

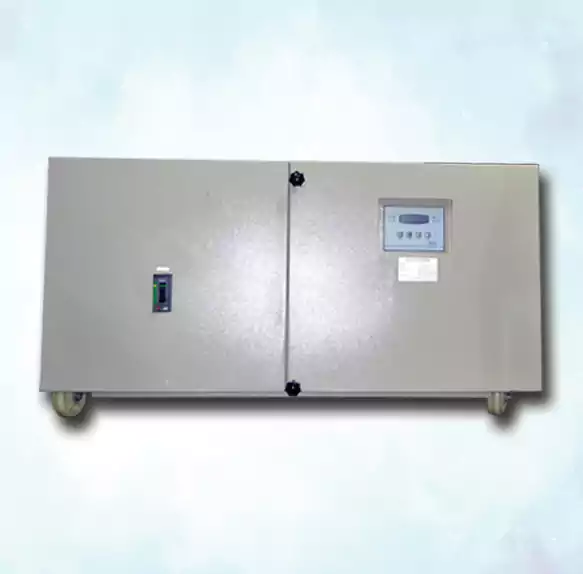

Three Phase Servo Controlled Air Cooled Stabilizers.

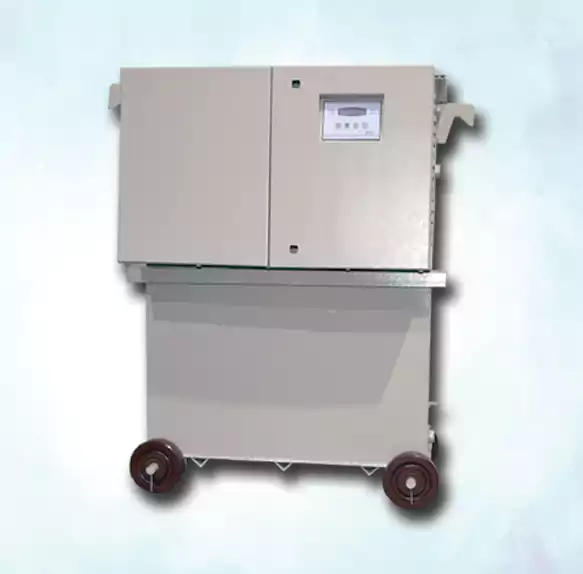

Oil Cooled Servo Controlled Voltage Stabilizers.

FEATURES

Micro controller based Digital Control card
99% Efficiency (achieved by optimum design)
Speed of corrections up to 60V/sec.
Protections - Over Voltage/Under Voltage/ Phase reverse/ Overload
Easy & Simple maintenance

ELECTRICAL SPECIFICATIONS

Capacity : 2KVA - 2000 KVA
Input : 340 - 480V AC
Output: 380/400/415V +/- 1% AC
Type : Air - Cooled / Oil Cooled / Force Air Cooled
Insulation Resistance : Not Less than 5M at 500V DC
HV Test : 2.5KV For 1 Min

Get A Quote

View / Download pdf

Phase	Series Name	Range	Input Range (V)	Input Tag	Model Code Example	Model
Single Phase	Laghu	1-5	170-270	NR	VCS-Laghu-1-5-NR	1,2,3 & 5
Single Phase	Laghu	1-5	150-270	MR	VCS-Laghu-1-5-MR
Single Phase	Laghu	1-5	120-270	WR	VCS-Laghu-1-5-WR
Single Phase	Laghu	1-5	90-270	XR	VCS-Laghu-1-5-XR
Single Phase	Mitra	6-10	170-270	NR	VCS-Mitra-6-10-NR	7.5 & 10
Single Phase	Mitra	6-10	150-270	MR	VCS-Mitra-6-10-MR
Single Phase	Mitra	6-10	120-270	WR	VCS-Mitra-6-10-WR
Single Phase	Mitra	6-10	90-270	XR	VCS-Mitra-6-10-XR
Single Phase	Yukti	11-15	170-270	NR	VCS-Yukti-11-15-NR	15
Single Phase	Yukti	11-15	150-270	MR	VCS-Yukti-11-15-MR
Single Phase	Yukti	11-15	120-270	WR	VCS-Yukti-11-15-WR
Single Phase	Yukti	11-15	90-270	XR	VCS-Yukti-11-15-XR
Single Phase	Sthira	16-20	170-270	NR	VCS-Sthira-16-20-NR	20
Single Phase	Sthira	16-20	150-270	MR	VCS-Sthira-16-20-MR
Single Phase	Sthira	16-20	120-270	WR	VCS-Sthira-16-20-WR
Single Phase	Sthira	16-20	90-270	XR	VCS-Sthira-16-20-XR

Three Phase	Teja	3-10	360-460	NR	VCS-Teja-3-10-NR	3,5,7.5 & 10
Three Phase	Teja	3-10	340-480	MR	VCS-Teja-3-10-MR
Three Phase	Teja	3-10	300-480	WR	VCS-Teja-3-10-WR
Three Phase	Teja	3-10	250-480	XR	VCS-Teja-3-10-XR
Three Phase	Vajra	11-50	360-460	NR	VCS-Vajra-11-50-NR	15,20,25,30,40 & 50
Three Phase	Vajra	11-50	340-480	MR	VCS-Vajra-11-50-MR
Three Phase	Vajra	11-50	300-480	WR	VCS-Vajra-11-50-WR
Three Phase	Vajra	11-50	250-480	XR	VCS-Vajra-11-50-XR
Three Phase	Dhairya	51-150	360-460	NR	VCS-Dhairya-51-150-NR	60,70,80,90,100,125 & 150
Three Phase	Dhairya	51-150	340-480	MR	VCS-Dhairya-51-150-MR
Three Phase	Dhairya	51-150	300-480	WR	VCS-Dhairya-51-150-WR
Three Phase	Dhairya	51-150	250-480	XR	VCS-Dhairya-51-150-XR
Three Phase	Pragya	151-300	360-460	NR	VCS-Pragya-151-300-NR	175,200,250 & 300
Three Phase	Pragya	151-300	340-480	MR	VCS-Pragya-151-300-MR
Three Phase	Pragya	151-300	300-480	WR	VCS-Pragya-151-300-WR
Three Phase	Pragya	151-300	250-480	XR	VCS-Pragya-151-300-XR
Three Phase	MahaShakti	301-500	360-460	NR	VCS-MahaShakti-301-500-NR	350,400,450 & 500
Three Phase	MahaShakti	301-500	340-480	MR	VCS-MahaShakti-301-500-MR
Three Phase	MahaShakti	301-500	300-480	WR	VCS-MahaShakti-301-500-WR
Three Phase	MahaShakti	301-500	250-480	XR	VCS-MahaShakti-301-500-XR

Note: All Model Above 250 Kva 3 Phase Oil Cooled Will Be TBD (To Be Discussed) Related To Dimensions Weight And Other Technical Specification.

Three Phase

CAPACITY	RANGE	DIMENSIONS
3KVA / 5KVA / 7.5KVA / 10KVA	300/340-480	H-760 W-340 L-400
3KVA / 5KVA / 7.5KVA / 10KVA	250-480	H-850 W-360 L-435
15KVA	360-460	H-1040 W-435 L-375
15KVA	340-480
15KVA	300-480
15KVA	250-480	H-850 W-360 L-435
20KVA	360-460	H-1040 W-435 L-375
20KVA	340-480	H-1040 W-435 L-375
20KVA	300-480	H-1125 W-520 L-460
20KVA	250-480	H-1125 W-520 L-460
25KVA	360-460	H-1040 W-435 L-375
25KVA	340-480	H-1040 W-435 L-375
25KVA	300-480	H-1125 W-520 L-460
25KVA	250-480	H-1125 W-520 L-460
30KVA	360-460	H-1125 W-520 L-460
30KVA	340-480
30KVA	300-480
30KVA	250-480	H-1275 W-600 L-555
40KVA	360-460	H-1125 W-520 L-460
40KVA	340-480
40KVA	300-480
40KVA	250-480	H-1275 W-600 L-555
50KVA	360-460	H-1125 W-520 L-460
50KVA	340-480	H-1125 W-520 L-460
50KVA	300-480	H-1275 W-600 L-555
50KVA	250-480	H-1280 W-840 L-500
60KVA	360-460	H-1275 W-600 L-555
60KVA	340-480	H-1125 W-520 L-460
60KVA	300-480	H-1280 W-840 L-500
60KVA	250-480	H-1430 W-840 L-500
80KVA	360-460	H-1275 W-600 L-555
80KVA	340-480	H-1280 W-840 L-500
80KVA	300-480	H-1430 W-840 L-500
80KVA	250-480	H-1430 W-840 L-500
100KVA	360-460	H-1280 W-840 L-500
100KVA	340-480	H-1430 W-840 L-500
100KVA	300-480	H- 1605 W-975 L-650
100KVA	250-480	H- 1780 W-975 L-650
125KVA / 150KVA	360-460	TBD (TO BE DISCUSSED)
	340-480
	300-480
	250-480

Single Phase

CAPACITY	RANGE	DIMENSIONS
1KVA	170-270	H-270 W-210 L-320
1KVA	150-270	H-270 W-210 L-320
1KVA	120-270	H-285 W-200 L-315
1KVA	90-270	H-285 W-200 L-315
2KVA	170-270	H-270 W-210 L-320
2KVA	150-270	H-270 W-210 L-320
2KVA	120-270	H-285 W-200 L-315
2KVA	90-270	H-285 W-200 L-315
3KVA	170-270	H-270 W-210 L-320
3KVA	150-270	H-270 W-210 L-320
3KVA	120-270	H-315 W-250 L-325
3KVA	90-270	H-315 W-250 L-325
5KVA	170-270	H-300 W-235 L-460
5KVA	150-270	H-300 W-235 L-460
5KVA	120-270	H-760 W-340 L-400
5KVA	90-270	H-760 W-340 L-400
7.5KVA	170-270	H- 350 W-280 L-520
7.5KVA	150-270	H- 350 W-280 L-520
7.5KVA	120-270	H-1040 W-435 L-375
7.5KVA	90-270	H-1040 W-435 L-375
10KVA	170-270	H- 350 W-280 L-520
10KVA	150-270	H- 350 W-280 L-520
10KVA	120-270	H-1040 W-435 L-375
10KVA	90-270	H-1040 W-435 L-375
15KVA	170-270	TBD(TO BE DISCUSSED)
15KVA	150-270
15KVA	120-270
15KVA	90-270
20KVA	170-270	TBD(TO BE DISCUSSED)
20KVA	150-270
20KVA	120-270
20KVA	90-270

Oil Cooled

25KVA	H-650 W-650 L-610
50KVA	H-775 W-800 L-725
100KVA	H-1175 W-850 L-800
125KVA	H-1175 W-850 L-800
150KVA	H-1175 W-850 L-800
200KVA	H-1450 W-1100 L-950
250KVA	H-1600 W-1100 L-950

This Is Normal Range Range Above Normal Will Be Discussed.
