Effective Harmonic Reduction and Current Surge Protection for Drive Systems

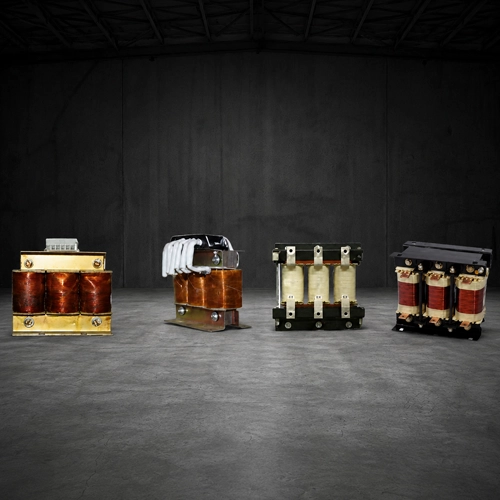

DC Reactors are installed between the rectifier and DC bus to improve power quality and enhance the performance of variable frequency drives (VFDs) and power conversion systems. They help reduce harmonic distortion, limit current surges, and smooth DC current flow, ensuring reliable operation of connected equipment. With their compact design, low voltage drop, and efficient harmonic mitigation capabilities, DC reactors provide a cost-effective solution for improving system efficiency, protecting components, and extending equipment life in industrial applications.
Key Features:
- Improve the input current wave caused by capacitor harmonics.
- Reduce and prevent rectifier bridge damage and capacitors.
- Overheating due to a surge in current.
- Improve the power factor and reduce the AC pulse of the DC bus.
- Limit transient changes in system voltage.
| Specification | Details |
|---|---|
| Power Rating | 160 kW (200 HP) |
| Input Voltage | 220V – 1200V AC (Other Voltages Available on Request) |
| Rated Current | 400 A |
| Inductance | 0.08 mH |
| Insulation Grade | Class F / Class H |
| Dimensions | 165 × 200 × 185 mm |
| Mounting Dimensions | 120 × 120 mm |
| Electrical Strength | Iron Core-Winding: 3000V AC / 50Hz / 1 Minute / 60 Seconds, No Arcing or Breakdown |
| Insulation Resistance | Iron Core-Winding: 1000V DC, ≥ 100 MΩ |
| Noise Level | Less Than 35 dB (Measured at 1 Meter Distance) |
| Protection Degree | IP00 |
| Degree of Insulation | Class F |
| Weight | 22 kg |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Improves equipment reliability and process stability
- Reduces risk of downtime caused by power issues
- Supports safe operation of sensitive loads
- Designed for dependable performance in industrial environments
Business Advantages
- Extends asset life and lowers maintenance burden
- Improves productivity with consistent power quality
- Offers scalable solutions for diverse industries
- Backed by experienced engineering and service support
Our Expertise
- Aviation
- Machine tool industry
- Food industry
- Automobile industry
- Oil and natural gas industries
- Chemical, petroleum, and pharmaceutical industries
- Textile industries
- Defence and research institutes sectors
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
