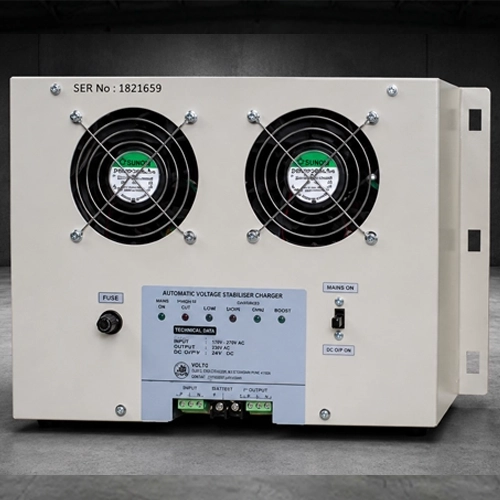

SMPS Based Battery Charger

Compact, Efficient Charging with Advanced SMPS Technology

Our SMPS-based battery chargers offer compact design, reduced energy losses, and reliable charging performance suitable for modern industrial power systems.

Key Features:

  • Type - Automatic Float cum Boost Battery Charger
  • Input - 180 ~ 270 V AC
  • Ratings - 12V / 24 V ~ 10A to 40A
  • Controls - A) Auto/ Manual Mode Selection B) Float/ Boost Mode Selection
Brochure Icon

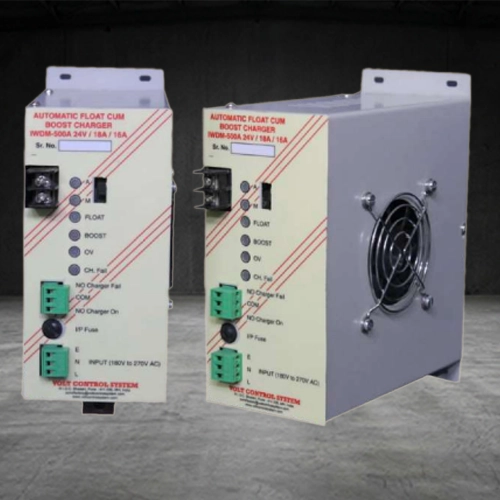

ProductSMPS Based Automatic Float Cum Boost Battery Charger
ModelIWDL 150IWDL 150IWDM 500AIWDM 500IWDM 800IWDM 1100
Rating12V/10A12V/15A24V/15A24V/18A/20A24V/30A24V/40A
I/P Voltage180 V TO 270 V AC180 V TO 270 V AC180 V TO 270 V AC180 V TO 270 V AC180 V TO 270 V AC180 V TO 270 V AC
Frequency47 TO 60 HZ47 TO 60 HZ47 TO 60 HZ47 TO 60 HZ47 TO 60 HZ47 TO 60 HZ
I/P Current1A1.5A15A20A30A40A
O/P Current10A15A15A20A30A40A
Float Voltage13.4(adj.)13.4(adj.)26.5(adj.)26.5(adj.)26.5(adj.)26.5(adj.)
Boost Voltage14.5(adj.)14.5(adj.)28.5(adj.)28.5(adj.)28.5(adj.)28.5(adj.)
Float to Boost Change Over2-6A(adj.)2-6A(adj.)2-6A(adj.)2-6A(adj.)2-6A(adj.)2-6A(adj.)
Regulation+/- 1%+/- 1%+/- 1%+/- 1%+/- 1%+/- 1%
Ripple<1%<1%<1%<1%<1%<1%
Protection
Output Short CircuitYESYESYESYESYESYES
Output OverloadVOLTAGE DROPPINGVOLTAGE DROPPINGVOLTAGE DROPPINGVOLTAGE DROPPINGVOLTAGE DROPPINGVOLTAGE DROPPING
Output Over-VoltageYESYESYESYESYESYES
Battery ReverseYESYESYESYESYESYES
Dry ContactsFLOAT / BOOST CHRGER FAIL OPTIONALFLOAT / BOOST CHRGER FAIL OPTIONALCHARGER ON, CHARGER FAILCHARGER ON, CHARGER FAILFLOAT / BOOST CHRGER FAIL OPTIONALFLOAT / BOOST CHRGER FAIL OPTIONAL
ControlsAUTOAUTOAUTO/MAN BOOSTAUTO/MAN BOOSTAUTO/MAN / FLOAT / BOOSTAUTO/MAN / FLOAT / BOOST
IndicationMAINS ON / FLOAT BOOSTMAINS ON / FLOAT BOOSTOVER VOLTAGE, CHARGER FAIL AUTO MANUAL FLOAT, BOOSTOVER VOLTAGE, CHARGER FAIL AUTO MANUAL FLOAT, BOOSTOVER VOLTAGE, CHARGER FAIL AUTO MANUAL FLOAT, BOOSTOVER VOLTAGE, CHARGER FAIL AUTO MANUAL FLOAT, BOOST
CoolingFORCED AIRFORCED AIRFORCED AIRFORCED AIRFORCED AIRFORCED AIR
MountingWALL MOUNTINGWALL MOUNTINGWALL MOUNTINGWALL MOUNTINGWALL MOUNTINGWALL MOUNTING
DIMENTIONS (mm) L*D*H*80*145*19080*145*19080*190*20080*190*200300*115*205290*350*110
WEIGHT IN KG1.41.41.81.83.85.5
Standards Followed
IS5921/1249Copper cladbase material in electrical/electronic equipment's
IS6297/2026Transformers and inductors.
IS 6553Environmental requirements for semiconductors and Integrated circuits.
IS4064Airbreak switches
IS8828MCBs
IS 9224HRC fuses
IS1248Indicating instruments
IS 6619Semiconductor Rectifier equipment safety
IS613Copper busbars
IS2959Contactors.
IS3231Electrical relays
IS13703Low voltage fuses
IS4540Mono Crystal line Semi conductor rectifier assembly
IS4237General requirements for switchgear and control switches
IEC62040-2Electro magnetic conduction and interference.

Operational Advantages

  • Improves equipment reliability and process stability
  • Reduces risk of downtime caused by power issues
  • Supports safe operation of sensitive loads
  • Designed for dependable performance in industrial environments

Business Advantages

  • Extends asset life and lowers maintenance burden
  • Improves productivity with consistent power quality
  • Offers scalable solutions for diverse industries
  • Backed by experienced engineering and service support

Additional Benefits

  • Cost effective solution for DC power requirements
  • Light-weight, compact, ultra-efficient, and rugged design
  • Low thermal losses with low working temperatures
  • Soft start protection
  • Current limit protection
  • Over voltage protection
  • Over load protection
  • Reverse polarity protection
  • Optional potential free contacts
  • One year piece replacement guarantee
  • In house
  • Ready stocks available

Our Expertise

  • Aviation
  • Machine tool industry
  • Food industry
  • Automobile industry
  • Oil and natural gas industries
  • Chemical, petroleum, and pharmaceutical industries
  • Textile industries
  • Defence and research institutes sectors

* We provide highly eficient, compact, and SMPS based DC power supplies and Automatic Float Cum Boost battery Chargers for your low power DC supply needs. Designed for enhancing the battery life and reliability, it is a must for applications which require an uninterrupted power Supply and continuous charge replenishment of the batteries.
