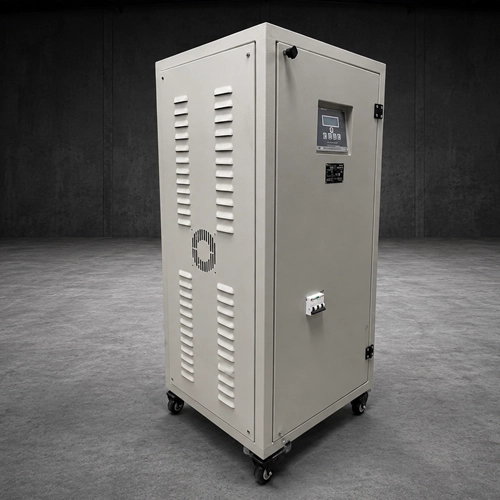

Single Phase Servo Controlled Voltage Stabilizers
Reliable Voltage Protection for Consistent Equipment Performance
Volt Control System's Single Phase Servo Controlled Voltage Stabilizers provide precise voltage regulation and reliable protection against power fluctuations. Designed for efficient and stable performance, they safeguard sensitive equipment, improve operational reliability, and extend equipment life.
Key Features:
- Micro controller based Digital Control card
- Fast Response to Voltage Fluctuations
- Reliable Protection Against Over & Under Voltage
- Energy Efficient Operation
- Low Maintenance Design
- Digital Monitoring & Display Options
- Enhanced Equipment Life & Performance
- Smooth and Stable Output Voltage
| Product | Single Phase Servo Controlled Voltage Stabilizer | |||
|---|---|---|---|---|
| Capacity | 3 KVA | 5 KVA | 7.5 - 10 KVA | 15 KVA |
| Input Voltage | 170-270V AC Single Phase (Customized Available) | |||
| Output Voltage | 230V +/-1% AC Single Phase (Customized Available) | |||
| Enclosure | Enclosed in sheet metal structure of adequate thickness with louver for ventilation | |||
| Output Voltage Regulation | ±1% | |||
| Frequency | 47-53HZ | |||
| Type | Suitable for any supply conditions | |||
| Efficiency | ≥98% | |||
| Duty Cycle | 100% Continuous | |||
| Rate of Correction | Up to 70 Volts/Sec | |||
| Response Time | 10ms | |||
| Output Waveform | True replication of input | |||
| Waveform Distortion | Nil | |||

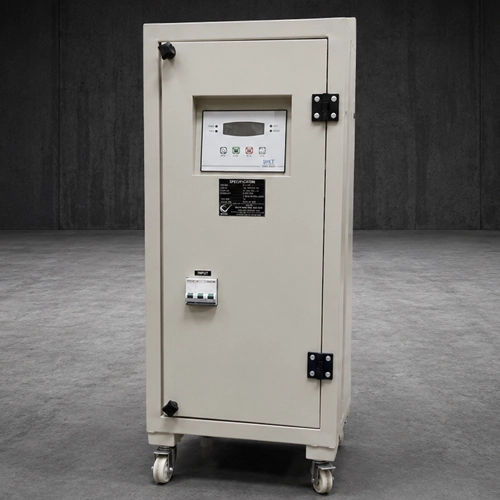

| Cooling | Air cooled (Oil cooled optional) | |||
| Type of Insulation | F-Class | |||
| Ambient | 0-45 Degree C @ 90%R.H. | |||
| Panel | Powder Coated | |||
| Colour | RAL7032, Siemens Grey | |||
| Type of Motor | Servo Motor | |||
| Standard Accessories Included | ||||
| Adjustable electronic alarm circuit monitoring input and output voltages | ||||
| With cut off facility through relay / contactor | ||||
| Digital display for input & output for phase to neutral voltage | ||||
| Audio alarm for tripping condition | ||||
| Indication | ||||
| I) Output Indication | ||||
| II) Auto / Manual | ||||
| III) High/REV | ||||
| IV) Low/FWD | ||||
| V) Input Indication | ||||
| Low Voltage Protection | ||||
| High Voltage Protection | ||||
| Dimensions in mm (Approx) | 240 X 340 X 380 | 240 X 470 X 380 | 375 X 450 X 590 | 410 X 480 X 590 |
| Weight in KG (Approx) | 14 | 30 | 60 | 100 |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Maintains steady output voltage to protect sensitive equipment.
- Improves machine uptime by minimizing voltage-related failures.
- Fast correction response ensures stable operation during fluctuations.
- Reduces maintenance burden with robust and reliable design.
Business Advantages
- Extends equipment life and lowers replacement costs.
- Supports consistent production quality in variable grid conditions.
- Energy-efficient operation contributes to reduced operating expenses.
- Designed for industrial dependability and long-term performance.
Our Expertise
- Industrial Manufacturing & Processing: SCVS are used in industries with heavy machinery and equipment that require a stable voltage supply for efficient operation. These stabilizers ensure that production processes, like metalworking, plastic molding, and packaging, run smoothly without interruptions due to voltage fluctuations.
- Healthcare & Hospitals: Hospitals use SCVS to ensure that medical equipment like MRI machines, CT scanners, ventilators, and other life-saving devices operate at optimal performance without the risk of power fluctuations affecting their functionality.
- Automotive Manufacturing: SCVS are used in automotive manufacturing plants where precision equipment such as robotic arms, conveyors, and assembly lines require consistent voltage for proper operation.
- Pharmaceutical Manufacturing: In pharmaceutical plants, SCVS are used to protect sensitive equipment involved in the production and packaging of drugs, ensuring that voltage variations do not affect the manufacturing process or product quality.
- Marine & Shipbuilding: SCVS are used in ships and offshore platforms to maintain stable power for onboard systems, such as navigation equipment, communication devices, and engine control systems.
- Oil & Gas Industry: SCVS are used in oil and gas exploration and production facilities to protect equipment in remote areas where power quality may be poor or unstable, ensuring that critical systems like pumps, drilling rigs, and compressors operate without interruption.
- Food & Beverage Industry: SCVS are used in food processing plants to maintain consistent voltage for equipment like mixers, ovens, conveyors, and packaging machines. Voltage fluctuations could lead to production inefficiencies or equipment damage.
- Retail & Commercial Establishments: In retail outlets, supermarkets, and commercial buildings, SCVS are used to maintain stable voltage levels for POS (point of sale) systems, lighting, and HVAC systems. This ensures smooth operations and protects electrical equipment from damage.
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
