Compact, Energy-Efficient & Low-Noise Power Transformation Solutions

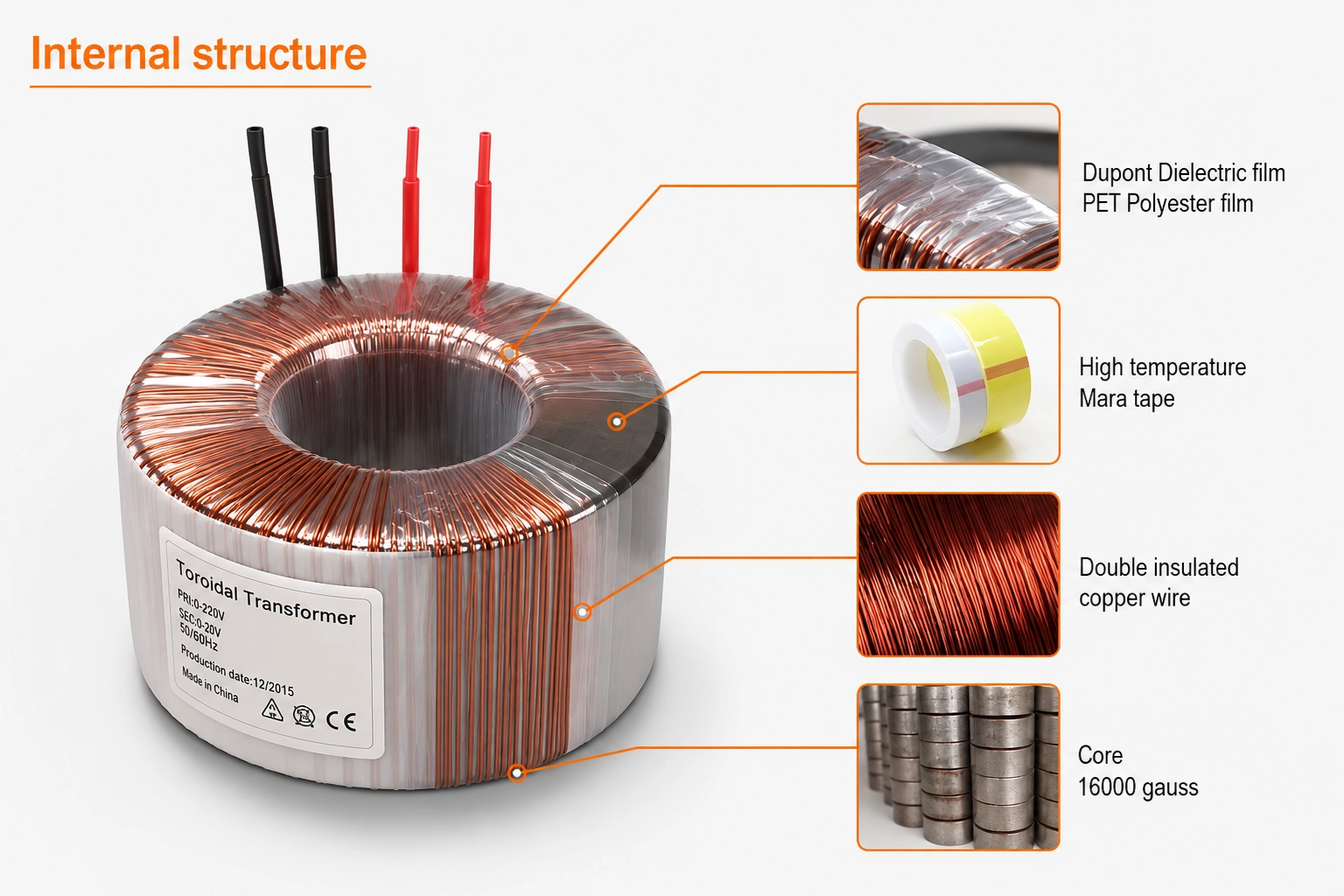

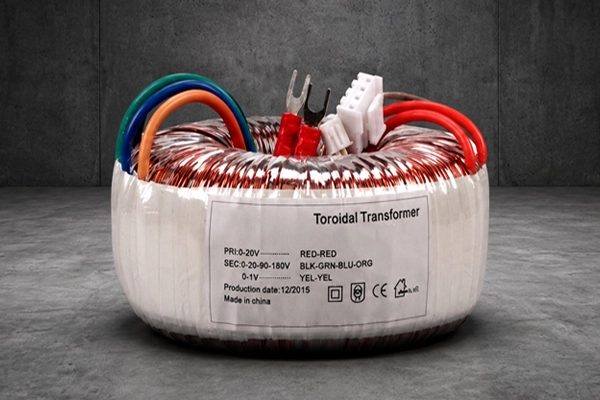

Volt Control System's Toroidal Transformers are engineered for high efficiency, compact size, and superior electrical performance. Designed with a ring-shaped core, these transformers offer lower magnetic leakage, reduced noise, and improved energy efficiency compared to conventional transformers. Ideal for industrial equipment, medical devices, automation systems, audio equipment, and sensitive electronic applications, they provide reliable voltage transformation with excellent thermal performance and long service life.
Advantages :
- High Efficiency
- Long Service Life
- Less Noise
- Less Radiation
| Specification | Details |
|---|---|
| Phase | Single Phase |
| Power | Up to 1000 VA |
| Primary Voltage | 110V AC (Optional: 110V, 120V, 220V, 230V, 240V) |
| Secondary Voltage | As Per User Requirement |
| No. of Inputs | As Per User Requirement |
| No. of Outputs | 1 Output (4-Wire 2 Outputs Available) |
| Frequency | 50Hz / 60Hz |
| Winding Material | Copper Wire |
| Coil Structure | Toroidal |
| Efficiency | 90% - 96% |
| No-Load Loss | < 2.5W |
| Voltage Strength | DC 2500V |
| Insulation Resistance | ≥ 500 MΩ |
| Cooling Method | Natural Air Cooling |
| Operating Temperature | Up to +40°C |
| Certifications | CE, RoHS & ISO Certified |
| External Diameter | 105 mm |
| Height | 47 mm |
| Pedestal | 100 × 100 mm |
| Mounting Hole Distance | 90 × 90 mm |
| Package Included | Toroidal Transformer with Accessories Set (Nut, Shim, Metal Disc, Rubber Gasket, Pedestal & Screws) |
| Warranty | 12 Months |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
