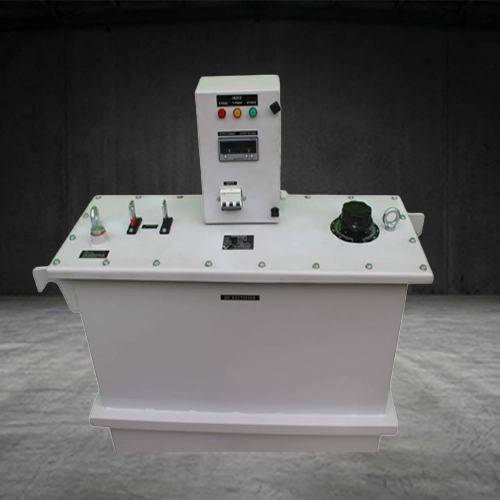

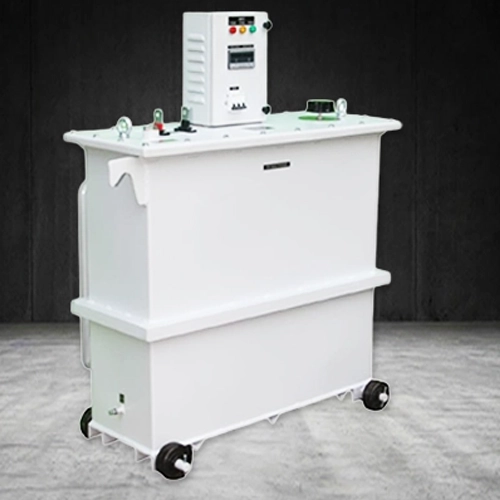

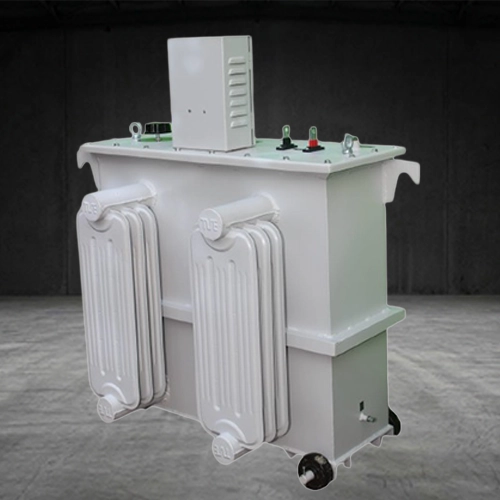

DC
Rectifier
Reliable AC to DC Conversion for Industrial Systems
DC rectifier solutions from Volt Control System deliver stable, efficient conversion for process plants, control systems, and critical DC applications.
Key Features:
- High performance and application-specific engineering
- Reliable operation under varying input conditions
- Quality-focused manufacturing and rigorous testing
- Built for long service life and low maintenance
- Stable output to protect critical equipment
- Optimized energy efficiency for industrial use
- Customizable options for OEM and project requirements
- Supported by responsive service and technical assistance
| Product | Single Phase DC Rectifier | |||||
|---|---|---|---|---|---|---|
| Capacity | 2-5 KW | 6 - 7.5 KW | 10 KW | |||
| Input Voltage | 230VAC 1PH +/-10% | |||||
| Input Frequency | 50Hz ANY FACTORY CONFIGURABLE | |||||
| Output Voltage | 10% TO 100% ANY FACTORY CONFIGURABLE | |||||
| Output Current | 10% TO 100% ANY FACTORY CONFIGURABLE | |||||
| Regulation | +/-1% | |||||
| Ripple | <3% | |||||
| Configuration | THYRISTOR BASED | |||||
| Ingress Protections | IP20 (OPTIONAL 2x,3x,4x,5x,6x) | |||||
| Enclosure Type | MS FABRICATED | |||||
| Colour | RAL 7032 | |||||
| Indication | a) MAINS ON | |||||
| b) DC ON | ||||||
| c) DC HIGH | ||||||
| d) DC LOW | ||||||
| e) MAINS HIGH | ||||||
| f) MAINS LOW | ||||||
| Input | PROTECTIONS | |||||
| a) MCB / MCCB | ||||||
| b) OVER VOLTAGE. | ||||||
| c) UNDER VOLTAGE. | ||||||
| d) SURGE SUPPRESSION. | ||||||
| Output | a) OVER VOLTAGE | |||||
| b) UNDER VOLTAGE | ||||||
| c) OVER CURRENT | ||||||
| d) SHORT CIRCUIT | ||||||
| e) SOFT START | ||||||
| DCDB | a) AS REQUIRED | |||||
| Meter | a) INPUT VOLTMETER | |||||
| b) OUTPUT VOLTMETER | ||||||
| c) OUTPUT AMMETER | ||||||
| Climatic Conditions | CLIMATIC CONDITIONS | |||||
| Operating Temperature | 20 to + 55 degree C | |||||
| Altitude | 3500 METER | |||||
| Storage | -30 to +70 degree C | |||||
| Cooling | AIR COOLED (OPTIONAL OIL COOLED) | |||||
| Dimensions in mm (Approx) | 330x620x600 | 330x560x650 | 400x700x720 | |||
| Weight in kg (Approx) | 45-60 | 70-100 | 100-120 | |||
| Product | THREE PHASE DC POWER SUPPLY | |||||
|---|---|---|---|---|---|---|
| Capacity | 5 TO 20 KW | 25 TO 50 KW | 60 TO 80 KW | 90 TO 125 KW | 150 TO 200 KW | 225 TO 300 KW |
| Input Voltage | 415VAC 3PH +/-10% ANY FACTORY CONFIGURABLE | |||||
| Input Frequency | 50Hz ANY FACTORY CONFIGURABLE | |||||
| Output Voltage | 10% TO 100% ANY FACTORY CONFIGURABLE | |||||
| Output Current | 10% TO 100% ANY FACTORY CONFIGURABLE | |||||
| Regulation | +/-1% | |||||
| Ripple | <3% | |||||
| Configuration | THYRISTOR BASED | |||||
| Ingress Protections | IP20 (OPTIONAL 2x,3x,4x,5x,6x) | |||||
| Enclosure Type | MS FABRICATED | |||||
| Colour | RAL 7032 | |||||
| Indication | a) MAINS ON | |||||
| b) DC ON | ||||||
| c) DC HIGH | ||||||
| d) DC LOW | ||||||
| e) MAINS HIGH | ||||||
| f) MAINS LOW | ||||||
| Input | PROTECTIONS | |||||
| a) MCB / MCCB | ||||||
| b) OVER VOLTAGE. | ||||||
| c) UNDER VOLTAGE. | ||||||
| d) SURGE SUPPRESSION. | ||||||
| Output | a) OVER VOLTAGE | |||||
| b) UNDER VOLTAGE | ||||||
| c) OVER CURRENT | ||||||
| d) SHORT CIRCUIT | ||||||
| e) SOFT START | ||||||
| DCDB | a) AS REQUIRED | |||||
| Meter | a) INPUT VOLTMETER | |||||
| b) OUTPUT VOLTMETER | ||||||
| c) OUTPUT AMMETER | ||||||
| Climatic Conditions | CLIMATIC CONDITIONS | |||||
| Operating Temperature | 20 to + 55 degree C | |||||
| Altitude | 3500 METER | |||||
| Storage | -30 to +70 degree C | |||||
| Cooling | AIR COOLED (OPTIONAL OIL COOLED) | |||||
| Dimensions in mm (Approx) | 800x600x800 | 800x600x1200 | 800x600x1800 | 1000 x 800 x 1900 | 1550 x 850 x 1800 | 1700x1000x2200 |
| Weight in kg (Approx) | 100 - 150 | 250 - 500 | 600 - 800 | 1000 - 1300 | 1300 - 1800 | 1800 - 2200 |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Improves equipment reliability and process stability
- Reduces risk of downtime caused by power issues
- Supports safe operation of sensitive loads
- Designed for dependable performance in industrial environments
Business Advantages
- Extends asset life and lowers maintenance burden
- Improves productivity with consistent power quality
- Offers scalable solutions for diverse industries
- Backed by experienced engineering and service support
Our Expertise
- Aviation
- Machine tool industry
- Food industry
- Automobile industry
- Oil and natural gas industries
- Chemical, petroleum, and pharmaceutical industries
- Textile industries
- Defence and research institutes sectors
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
