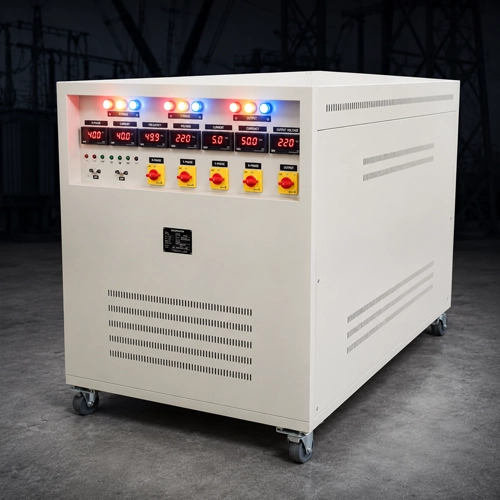

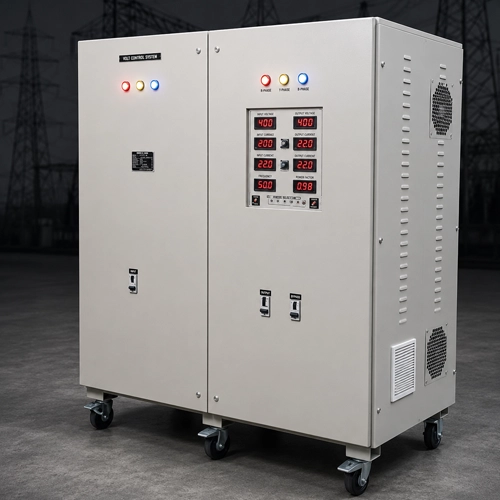

Three Phase Static Frequency Converter
Reliable Frequency Conversion for Mission-Critical Systems
Single Phase Static Frequency Converter s from Volt Control System provide stable and efficient frequency conversion to support sensitive equipment across aviation, defense, and industrial operations.
Key Features:
- High performance and application-specific engineering
- Reliable operation under varying input conditions
- Quality-focused manufacturing and rigorous testing
- Built for long service life and low maintenance
- Stable output to protect critical equipment
| Product | Three Phase Static Frequency Converter | |||||
|---|---|---|---|---|---|---|
| Capacity | 5 TO 20 KVA | 25 TO 50 KVA | 60 TO 80 KVA | 90 TO 125 KVA | 150 TO 200 KVA | 225 TO 300 KVA |
| Input Voltage | 415VAC 3PH +/-10% ANY FACTORY CONFIGURABLE | |||||
| Input Frequency | 50Hz ANY FACTORY CONFIGURABLE | |||||
| Output Voltage | ANY FACTORY CONFIGURABLE | |||||
| Output Frequency | 50Hz,60Hz,100Hz,400Hz,500Hz,1000Hz. ANY FACTORY SETTABLE | |||||
| Regulation | +/-1% | |||||
| Waveform | Sinewave | |||||
| Distortion | <3% on linear load <5% on non linear load | |||||
| Overload Protection | 110% for 1 minute and 150% for 1 second. | |||||
| Ingress Protection | IP20(OPTIONAL 2x,3x,4x,5x,6x) | |||||
| Efficiency | >85% | |||||
| Protections at Input | a) MCB OR MCCB | |||||
| b) Over Voltage | ||||||
| c) Under Voltage | ||||||
| d) Surge Suppression | ||||||
| Protections at Output | a) Over Voltage | |||||
| b) Under Voltage | ||||||
| c) Over current | ||||||
| d) Short Circuit | ||||||
| e) Soft Start | ||||||
| Digital Meter | a) Input Voltage | |||||
| b) Input Current | ||||||
| c) Input Frequency | ||||||
| d) Output Voltage | ||||||
| e) Output Current | ||||||
| f) Output Frequency | ||||||
| Enclosure Type | MS FABRICATED | |||||
| Colour | RAL 7032 | |||||
| CLIMATIC CONDITIONS | ||||||
| Operating Temperature | -20 to + 55 degree C | |||||
| Altitude | 3500 meter | |||||
| Storage | -30 to + 70 degree C | |||||
| Dimensions | 800x600x800 | 800x600x1200 | 800x600x1800 | 1000 x 800 x 1900 | 1550 x 850 x 1800 | 1700x1000x2000 |
| Weight in KG | 100 - 150 | 250 - 500 | 600 - 800 | 1000 - 1300 | 1300 - 1800 | 1800 - 2200 |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Improves equipment reliability and process stability
- Reduces risk of downtime caused by power issues
- Supports safe operation of sensitive loads
- Designed for dependable performance in industrial environments
Business Advantages
- Extends asset life and lowers maintenance burden
- Improves productivity with consistent power quality
- Offers scalable solutions for diverse industries
- Backed by experienced engineering and service support
Our Expertise
- Aviation
- Machine tool industry
- Food industry
- Automobile industry
- Oil and natural gas industries
- Chemical, petroleum, and pharmaceutical industries
- Textile industries
- Defence and research institutes sectors
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
