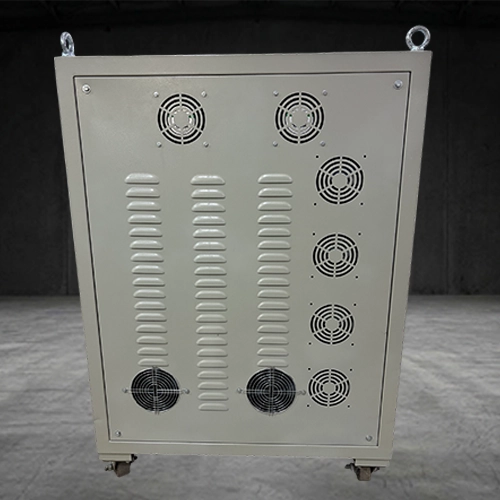

Offline UPS / Inverters
Essential Backup Power for Everyday Reliability
Our offline UPS and inverter solutions provide reliable backup power for critical loads, ensuring continuity during outages and voltage instability in commercial and industrial setups.
Key Features:
- Efficient, Reliable & Compact Design.
- Ratings : 1KVA to 50 KVA.
- Designed with wide input range & operates smoothly.
| Product | Single Phase UPS | ||
|---|---|---|---|
| Capacity | 2 - 5 KVA | 6 - 7.5 KVA | 10 KVA |
| Input Voltage | 230VAC 1PH +/-10% | ||
| Input Frequency | 50Hz Any Factory Configurable | ||
| Output Voltage | Any Factory Configurable | ||
| Output Frequency | Any Factory Configurable | ||
| Regulation | +/-1% | ||
| Waveform | Sinewave | ||
| Distortion | <3% on linear load <5% on non-linear load | ||
| Overload Protection | 110% for 1 minute and 150% for 1 second | ||
| Ingress Protection | IP20 (optional 2x, 3x, 4x, 5x, 6x) | ||
| Efficiency | >85% | ||
| Protections at Input | a) MCB | ||
| b) Over Voltage | |||
| c) Under Voltage | |||
| d) Surge Suppression | |||
| Protections at Output | a) Over Voltage | ||
| b) Under Voltage | |||
| c) Over Current | |||
| d) Short Circuit | |||
| e) Soft Start | |||
| Digital Meter | a) Input Voltage | ||
| b) Input Current | |||
| c) Input Frequency | |||
| d) Output Voltage | |||
| e) Output Current | |||
| f) Output Frequency | |||
| Enclosure Type | MS Fabricated | ||
| Colour | RAL 7032 | ||
| Operating Temperature | 20 to +55 degree C | ||
| Altitude | 3500 meter | ||
| Storage | -30 to +70 degree C | ||
| Dimensions in mm (Approx) | 330x620x600 | 330x560x650 | 400x700x720 |
| Weight in kg (Approx) | 45-60 | 70-100 | 100-120 |
| Product | Three Phase UPS | |||||
|---|---|---|---|---|---|---|
| Capacity | 5 to 20 KVA | 25 to 50 KVA | 60 to 80 KVA | 90 to 125 KVA | 150 to 200 KVA | 225 to 300 KVA |
| Input Voltage | 415VAC 3PH +/-10% any factory configurable | |||||
| Input Frequency | 50Hz any factory configurable | |||||
| Output Voltage | Any factory configurable | |||||
| Output Frequency | Any factory configurable | |||||
| Regulation | +/-1% | |||||
| Waveform | Sinewave | |||||
| Distortion | <3% on linear load <5% on non linear load | |||||
| Overload Protection | 110% for 1 minute and 150% for 1 second | |||||
| Ingress Protection | IP20 (optional 2x, 3x, 4x, 5x, 6x) | |||||
| Efficiency | >85% | |||||
| Protections at Input | a) MCB or MCCB | |||||
| b) Over Voltage | ||||||
| c) Under Voltage | ||||||
| d) Surge Suppression | ||||||
| Protections at Output | a) Over Voltage | |||||
| b) Under Voltage | ||||||
| c) Over Current | ||||||
| d) Short Circuit | ||||||
| e) Soft Start | ||||||
| Digital Meter | a) Input Voltage | |||||
| b) Input Current | ||||||
| c) Input Frequency | ||||||
| d) Output Voltage | ||||||
| e) Output Current | ||||||
| f) Output Frequency | ||||||
| Enclosure Type | MS Fabricated | |||||
| Colour | RAL 7032 | |||||
| Operating Temperature | -20 to +55 degree C | |||||
| Altitude | 3500 meter | |||||
| Storage | -30 to +70 degree C | |||||
| Dimensions in mm (Approx) | 800x600x800 | 800x600x1200 | 800x600x1800 | 1000x800x1900 | 1550x850x1800 | 1700x1000x2000 |
| Weight in kg (Approx) | 100 - 150 | 250 - 500 | 600 - 800 | 1000 - 1300 | 1300 - 1800 | 1800 - 2200 |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Improves equipment reliability and process stability
- Reduces risk of downtime caused by power issues
- Supports safe operation of sensitive loads
- Designed for dependable performance in industrial environments
Business Advantages
- Extends asset life and lowers maintenance burden
- Improves productivity with consistent power quality
- Offers scalable solutions for diverse industries
- Backed by experienced engineering and service support
Our Expertise
- Telecommunication Equipments.
- Process control
- Instrumentation
- Automation loads
- Laboratory & Analytical Equipments
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
