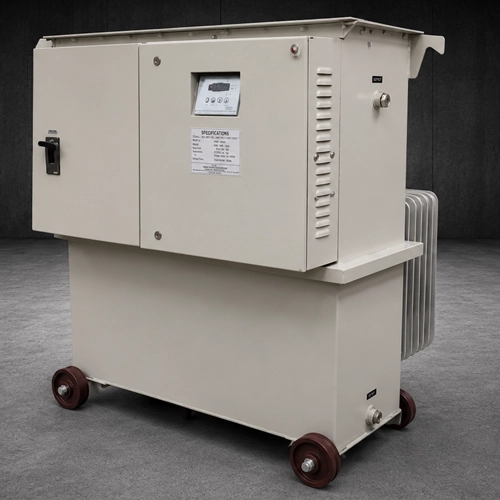

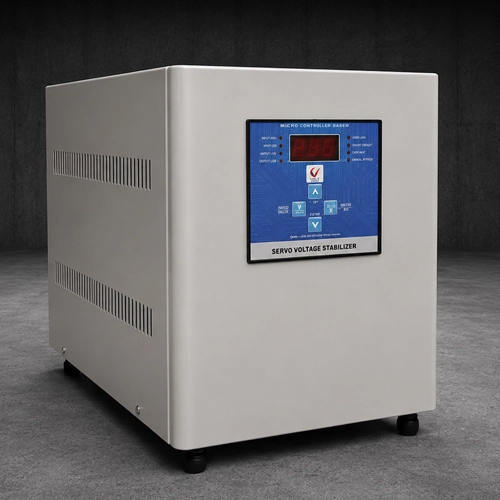

Three Phase Servo Controlled Air Cooled Stabilizers
Precision Three-Phase Voltage Control for Heavy-Duty Loads
Volt Control System offers air-cooled three phase servo stabilizers engineered for consistent voltage control, equipment protection, and dependable industrial operation under fluctuating power conditions.
Key Features:
- High Voltage Correction Accuracy
- Fast Response to Voltage Fluctuations
- Reliable Protection Against Over & Under Voltage
- Energy Efficient Operation
- Low Maintenance Design
- Digital Monitoring & Display Options
- Enhanced Equipment Life & Performance
- Smooth and Stable Output Voltage
| Product | Three Phase Servo Controlled Voltage Stabilizer | ||||
|---|---|---|---|---|---|
| Capacity | 3 - 10 KVA | 15 - 25 KVA | 30 - 50 KVA | 60 - 90 KVA | 100 - 150 KVA |
| Input Voltage | 340V - 480V (Customized Available) | ||||
| Output Voltage | 415V (Customized Available) | ||||
| Enclosure | Enclosed in sheet metal structure of adequate thickness, louver for ventilation and wheels for mobility | ||||
| Output Voltage Regulation | ±1% | ||||
| Frequency | 47 - 53HZ | ||||
| Type | Suitable for unbalanced load & supply conditions | ||||
| Efficiency | ≥98% | ||||
| Duty Cycle | 100% Continuous | ||||
| Rate of Correction | Up to 70 Volts/ Sec | ||||
| Short Circuit Protection | Yes | ||||
| Response Time | 10ms | ||||
| Overload Protection | Yes | ||||
| Output Waveform | True replication of input | ||||
| Waveform Distortion | Nil | ||||
| Cooling | Air cooled (optional oil cooled) | ||||
| Type of Insulation | F-Class | ||||
| Ambient | 0 - 45 Degree C @ 90%R.H. | ||||
| Panel | With powder coated | ||||
| Colour | RAL7032, Siemens Grey | ||||
| Type of Motor | A.C. synchronous servo motor | ||||
| Standard Accessories Included | |||||
| Adjustable electronic alarm circuit monitoring output voltage with cut off facility through contactor / MCCB | |||||
| LCD display for continuous monitoring showing input & output phase to phase, phase to neutral voltages , current on each phase, frequency | |||||
| Start/ stop push button | |||||
| MCCB at input for overload and short circuit protection | |||||
| Fully functional system log | |||||
| Auto / manual selector switch | |||||
| Audio alarm for tripping condition | |||||
| Indication | |||||
| I) Output ON indication | |||||
| II) Phase reverse indication | |||||
| III) Overload indication | |||||
| IV) Input fail indication | |||||
| Single phase preventer will be provided | |||||
| Low voltage protection and high voltage | |||||
| Phase reverse protection | |||||
| Overload protection | |||||
| Design standard as per IS: 9815 | |||||
| Dimensions in mm (Approx) | 340 X 420 X 760 | 450 X 400 X 940 | 520 X 480 X 1120 | 600 X 600 X 1310 | 1030 X 800 X 1075 |
| Weight in KG (Approx) | 60 | 80 - 100 | 180 - 200 | 250 - 300 | 350 - 450 |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Improves equipment reliability and process stability.
- Reduces risk of downtime caused by power issues.
- Supports safe operation of sensitive loads.
- Designed for dependable performance in industrial environments.
Business Advantages
- Extends asset life and lowers maintenance burden.
- Improves productivity with consistent power quality.
- Offers scalable solutions for diverse industries.
- Backed by experienced engineering and service support.
Our Expertise
- Industrial Manufacturing & Processing: SCVS are used in industries with heavy machinery and equipment that require a stable voltage supply for efficient operation. These stabilizers ensure that production processes, like metalworking, plastic molding, and packaging, run smoothly without interruptions due to voltage fluctuations.
- Healthcare & Hospitals: Hospitals use SCVS to ensure that medical equipment like MRI machines, CT scanners, ventilators, and other life-saving devices operate at optimal performance without the risk of power fluctuations affecting their functionality.
- Automotive Manufacturing: SCVS are used in automotive manufacturing plants where precision equipment such as robotic arms, conveyors, and assembly lines require consistent voltage for proper operation.
- Pharmaceutical Manufacturing: In pharmaceutical plants, SCVS are used to protect sensitive equipment involved in the production and packaging of drugs, ensuring that voltage variations do not affect the manufacturing process or product quality.
- Marine & Shipbuilding: SCVS are used in ships and offshore platforms to maintain stable power for onboard systems, such as navigation equipment, communication devices, and engine control systems.
- Oil & Gas Industry: SCVS are used in oil and gas exploration and production facilities to protect equipment in remote areas where power quality may be poor or unstable, ensuring that critical systems like pumps, drilling rigs, and compressors operate without interruption.
- Food & Beverage Industry: SCVS are used in food processing plants to maintain consistent voltage for equipment like mixers, ovens, conveyors, and packaging machines. Voltage fluctuations could lead to production inefficiencies or equipment damage.
- Retail & Commercial Establishments: In retail outlets, supermarkets, and commercial buildings, SCVS are used to maintain stable voltage levels for POS (point of sale) systems, lighting, and HVAC systems. This ensures smooth operations and protects electrical equipment from damage.
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
