Our oil-cooled servo stabilizers are designed for high-load environments, delivering robust correction performance, thermal stability, and long operating life in demanding industries.
| Product | Oil Cooled Servo Controlled Voltage Stabilizers | |||||||
|---|---|---|---|---|---|---|---|---|
| Capacity | 100 KVA | 150 KVA | 200 KVA | 250 KVA | 350 KVA | 500 KVA | 1000 KVA | 2000 KVA |
| Input Voltage | 340V - 480V (Customized Available) | |||||||
| Output Voltage | 415V (Customized Available) | |||||||
| Enclosure | Enclosed in sheet metal structure of adequate thickness, louver for ventilation and wheels for mobility | |||||||
| Output Voltage Regulation | ±1% | |||||||
| Frequency | 47 - 53HZ | |||||||
| Type | Suitable for unbalanced load & supply conditions | |||||||
| Efficiency | ≥98% | |||||||
| Duty Cycle | 100% Continuous | |||||||
| Rate of Correction | Up to 70 Volts/ Sec | |||||||
| Short Circuit Protection | Yes | |||||||
| Response Time | 10ms | |||||||
| Overload Protection | Yes | |||||||
| Output Waveform | True replication of input | |||||||
| Waveform Distortion | Nil | |||||||
| Cooling | Oil cooled | |||||||
| Type of Insulation | F-Class | |||||||
| Ambient | 0 - 45 Degree C @ 90%R.H. | |||||||
| Panel | With powder coated | |||||||
| Colour | RAL7032, Siemens Grey | |||||||
| Type of Motor | A.C. synchronous servo motor | |||||||
| Standard Accessories Included | ||||||||
| Adjustable electronic alarm circuit monitoring output voltage with cut off facility through contactor / MCCB | ||||||||
| LCD display for continuous monitoring showing input & output phase to phase, phase to neutral voltages , current on each phase, frequency | ||||||||
| Start/ stop push button | ||||||||
| MCCB at input for overload and short circuit protection | ||||||||
| Fully functional system log | ||||||||
| Auto / manual selector switch | ||||||||
| Audio alarm for tripping condition | ||||||||
| Indication | ||||||||
| I) Output ON indication | ||||||||
| II) Phase reverse indication | ||||||||
| III) Overload indication | ||||||||
| IV) Input fail indication | ||||||||
| Single phase preventer will be provided | ||||||||
| Low voltage protection and high voltage | ||||||||
| Phase reverse protection | ||||||||
| Overload protection | ||||||||
| Design standard as per IS: 9815 | ||||||||
| Dimensions (L × D × H) | Vary depending on product specifications and configuration. Detailed dimensions will be provided upon request. | |||||||
| Weight in KG (Approx) | Varies depending on product capacity, specifications, and configuration. Exact weight will be provided upon request | |||||||
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.

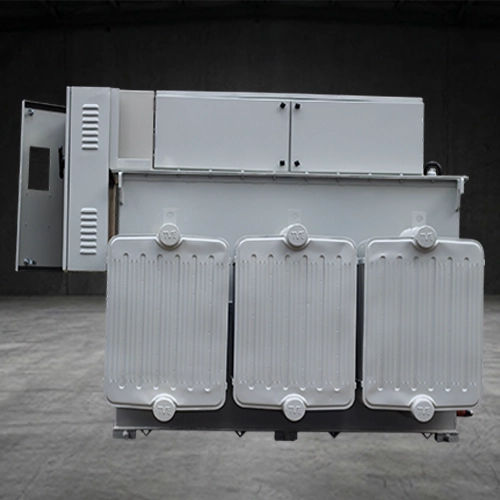

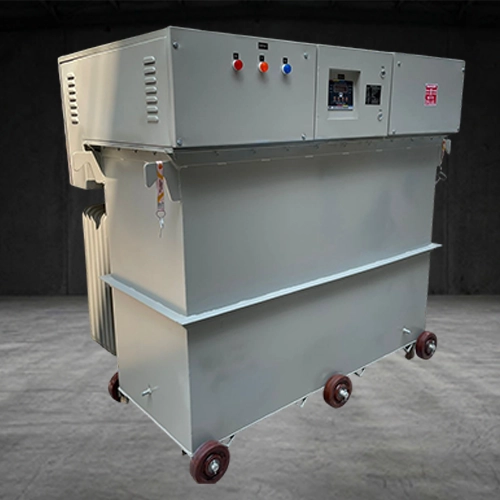

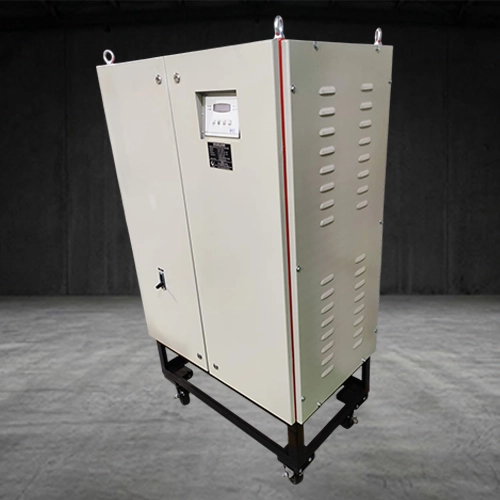

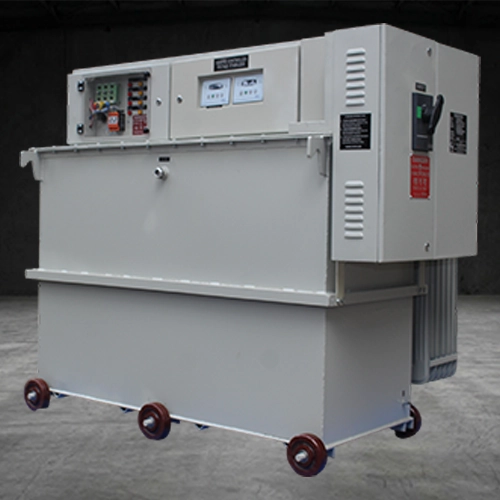

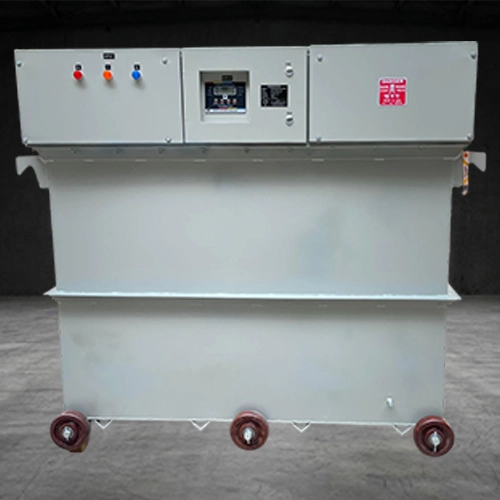

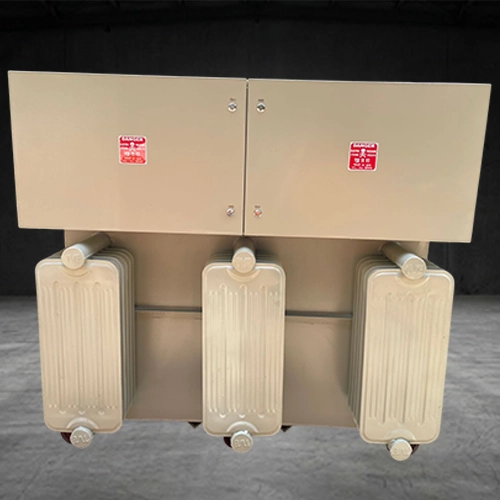

Explore the Dhairya 70–150 kVA Oil Cooled Stabilizers with the product images below. View the dedicated brochure for product specifications, features, and operating details.
Refer to the brochure for product specifications and operating details.
Purpose-built for U.S. industrial applications, this 250 kVA oil cooled servo controlled voltage stabilizer is designed for 480 V, 60 Hz power systems. It provides voltage stabilization for industrial equipment and machinery operating in the United States.
