Automated Voltage Regulation for Process Stability
Volt Control System Dimmers provide stepless, interruption-free, and continuous AC voltage control for a wide range of industrial and testing applications. Available in single-phase and three-phase configurations, they offer adjustable output voltage, reliable performance, and smooth operation. Our resin moulded dimmers are built for durability, easy installation, and continuous operation up to 120% load capacity, making them ideal for laboratories, automation systems, and industrial equipment.
Key Features:
- Simple and rugged construction.
- Coils made from high-grade CRGO silicon steel and 99.9% pure copper.
- Smooth, continuous, breakless, and linear voltage variation proportional to angular rotation.
- High operating efficiency with reliable performance
- Negligible waveform and power factor distortion.
- Excellent short-term overload handling capability
- Motorized operation available for remote control applications
- Wide range of voltage and current ratings available
| Parameter | Motorized Dimmers / Variac | ||
|---|---|---|---|
| Models Available |
Flush Open Manual (Air Cooled) – F Portable Enclosed Manual (Air Cooled) – P In Tank Manual (Oil Cooled) – T |
||
| Operating Voltage |
Single Phase: 240V AC, 50–60 Hz Three Phase: 415V AC, 50–60 Hz, 3Φ, 4-Wire |
||
| Current Ratings (Air Cooled) |
Maximum Current: 0.7A, 2A, 4A, 8A, 10A, 15A, 20A, 28A Continuous Current: 0.6A, 1.8A, 3.8A, 6.5A, 9A, 11.5A, 16A, 22A |
||
| Operating Temperature | 0°C to 45°C | ||
| Insulation Resistance | Minimum 5 MΩ at 500V DC | ||
| Dielectric Test | 2.5 kV RMS for 1 Minute | ||
| Storage Temperature | -9°C to 70°C | ||
| Humidity | Up to 95% RH | ||
| Conforms To | IS 5142 | ||
| Cooling Type | Air Cooled / Oil Cooled | ||
Ordering Information
(as per code specified below)| 1st block | Output current rating amps | 0.7, 2, 4, 8, 10, 15, 20, 28, 40, 50, 60, 75, 100, 125, 150, 200, 300, 400, 500, 600, 800, 1000, 1200, 1600A |
| 2nd block | Dimmerstat (D) | Continuously variable voltage auto transformer. |
| 3rd block | No. of coils | 1, 2, 3, 4, 6, 9, 12, 15, 30, 45 |
| 4th block | Type of construction |
F, P, T F = Flush, back of panel, open. P = Portable, floor, table mounting, air cooled with enclosure. T = In tank, immersed in oil. |
| 5th block | Provided with motor drive (M) | "Step-syn" 230V 1Ph AC 50Hz. 60rpm motor having instantaneous start-stop-reverse characteristics. |
| 6th block | Approx. time in secs. for full rotation sweep time | 8, 15, 30, 45, 60, 120 (As per standard gear ratios available) |
75 A Dimmerstat with 3 coils (Three phase) in oil-cooled tank construction with motor drive having 15s sweep.
8A Dimmerstat with 1 coil (single phase). Portable type and suitable for manual operation (no motorisation).
Similarly, other Dimmerstats can be configured and ordered.
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Mechanical Construction
Single-phase Variable Voltage Dimmers are available in three types:
- Portable Type (P): Sheet steel enclosure suitable for floor or table mounting.
- Flush Type (F): Open-type construction suitable for panel mounting.

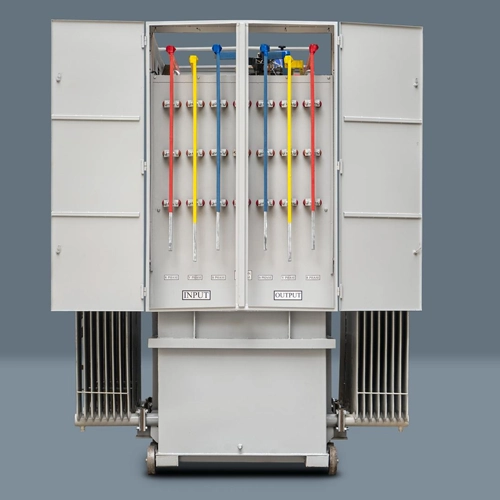

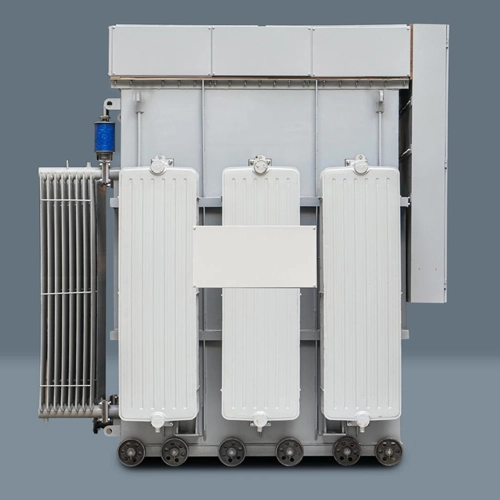

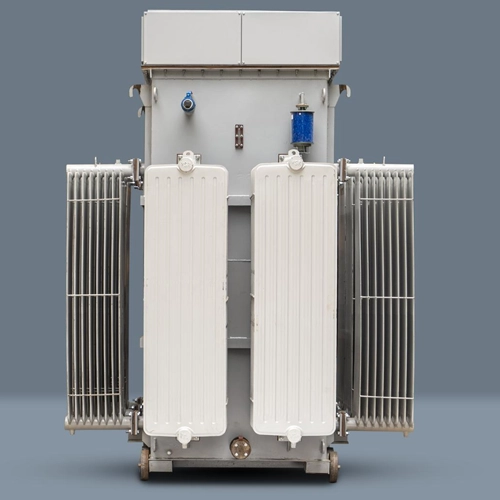

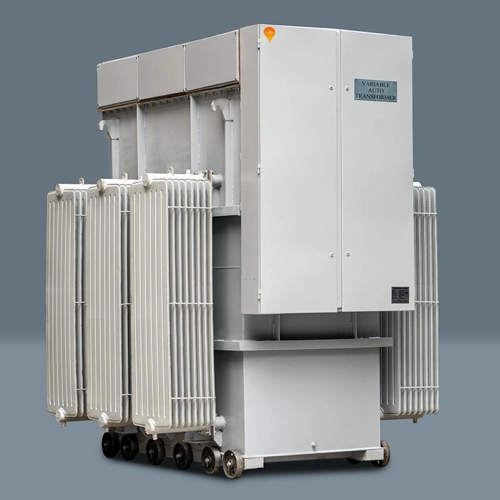

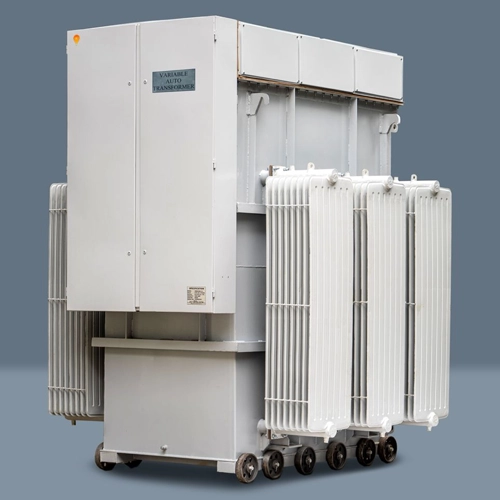

- Tank Type (T): Oil-immersed design housed in a sheet steel tank with roller mounting.
Three-phase units are generally supplied as three coils and are available in all three configurations: P, F, and T.
For higher current ratings (above 200 Amps), the units utilize 2/3 or more coils connected in parallel to achieve the required current-carrying capacity.
Motorized models use a 240V AC Step-Synchronous Motor operating at 60 RPM (50Hz). With appropriate gearing, higher torque and lower operating speeds can be achieved.
Standard sweep time options: 8, 15, 30, 45, 60, and 120 seconds.
Our Applications
- Auditoriums, Hotels, and Conference Halls
- Exhibitions and Laboratories
- AC Voltage Stabilizers and Rectifiers
- Battery Chargers
- Temperature Control of Ovens and Furnaces
- Testing of Instruments, Relays, and Circuit Breakers
- Welding, Electroplating, and Anodizing Processes
- Colleges and Universities
- Industrial Testing and Research Applications

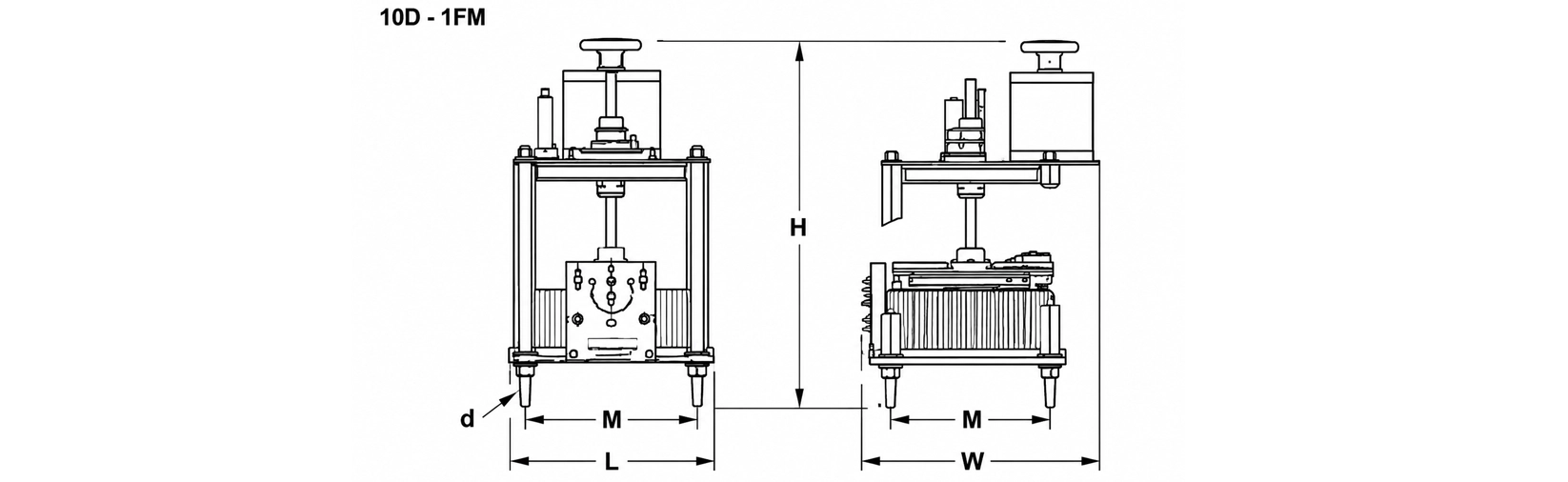

| 1 PHASE FLUSH MOTORISED (AIR COOLED) 1FM | |||||||
|---|---|---|---|---|---|---|---|
| Current Rating | 2 | 4 | 8 | 10 | 15 | 20 | 28 |
| L (mm) | 155 | 175 | 175 | 192 | 220 | 250 | 295 |
| W (mm) | 210 | 230 | 230 | 230 | 250 | 295 | 345 |
| H (mm) | 295 | 315 | 315 | 315 | 350 | 405 | 410 |
| M (mm) | 92 | 146 | 146 | 154 | 176 | 204 | 238 |
| D (mm) | 6.0 | 10 | 10 | 10 | 10 | 12 | 12 |
| Wt (kg) | 5.6 | 8.3 | 10.1 | 12.4 | 17 | 21.4 | 28.5 |

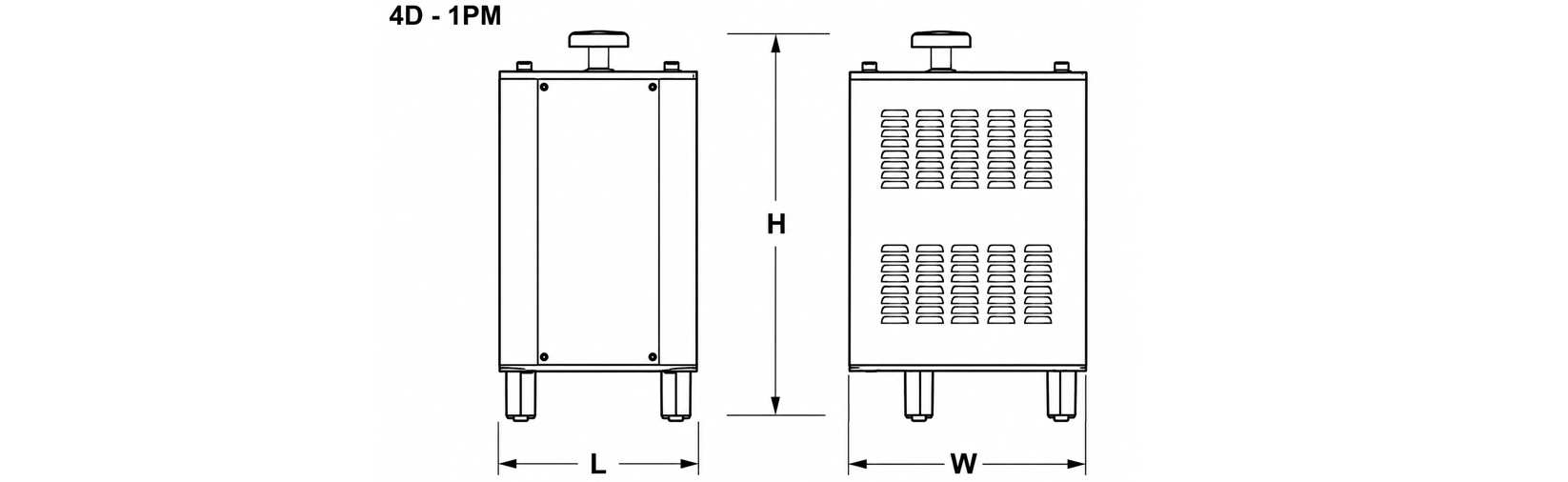

| 1 PHASE PORTABLE MOTORISED (AIR COOLED) - 1PM | |||||||
|---|---|---|---|---|---|---|---|
| Current Rating | 2 | 4 | 8 | 10 | 15 | 20 | 28 |
| L (mm) | 190 | 190 | 190 | 210 | 240 | 305 | 380 |
| W (mm) | 240 | 240 | 240 | 265 | 305 | 375 | 435 |
| H (mm) | 350 | 350 | 350 | 350 | 375 | 465 | 475 |
| Wt (kg) | 11.5 | 14.6 | 16.6 | 19 | 25 | 35 | 44.6 |
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
