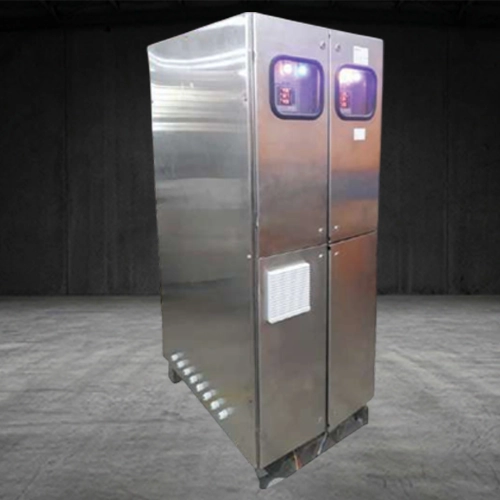

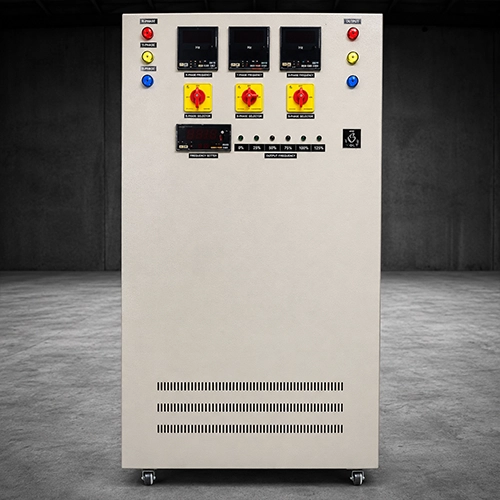

Single Phase Static Frequency Converter
Precise Frequency Conversion for Stable Power Supply
Volt Control System's Single Phase Static Frequency Converters provide reliable frequency and voltage conversion for sensitive electrical equipment. Designed for precision, efficiency, and consistent performance, they ensure stable operation across various industrial and commercial applications.
Key Features
- Accurate Frequency Conversion
- Stable Output Voltage & Frequency
- High Efficiency Performance
- Advanced Digital Control System
- Energy Efficient Operation
| Product | Single Phase Static Frequency Converter | ||
|---|---|---|---|
| Capacity | 2-5 KVA | 6 - 7.5 KVA | 10 KVA |
| Input Voltage | 230VAC 1PH +/-10% | ||
| Input Frequency | 50Hz any factory configurable | ||
| Output Voltage | Any factory configurable | ||
| Output Frequency | 50Hz,60Hz,100Hz,400Hz,500Hz,1000Hz. Any factory configurable | ||
| Regulation | +/-1% | ||
| Waveform | Sinewave | ||
| Distortion | <3% on linear load <5% on non-linear load | ||
| Overload Protection | 110% for 1 minute and 150% for 1 second. | ||
| Ingress Protection | IP20 (Optional 2x,3x,4x,5x,6x) | ||
| Efficiency | >85% | ||
| Protections at Input | a) MCB | ||
| b) Over Voltage | |||
| c) Under Voltage | |||
| d) Surge Suppression | |||
| Protections at Output | a) Over Voltage | ||
| b) Under Voltage | |||
| c) Over Current | |||
| d) Short Circuit | |||
| e) Soft Start | |||
| Digital Meter | a) Input Voltage | ||
| b) Input Current | |||
| c) Input Frequency | |||
| d) Output Voltage | |||
| e) Output Current | |||
| f) Output Frequency | |||
| Enclosure Type | MS fabricated | ||
| Colour | RAL 7032 | ||
| Climatic conditions | |||
| Operating Temperature | -20 to + 55 degree C | ||
| Altitude | 3500 meter | ||
| Storage | -30 to + 70 degree C | ||
| Dimensions | 330x620x600 | 330x560x650 | 400x700x720 |
| Weight in KG | 45-60 | 70 | 80 |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Improves equipment reliability and process stability
- Reduces risk of downtime caused by power issues
- Supports safe operation of sensitive loads
- Designed for dependable performance in industrial environments
Business Advantages
- Extends asset life and lowers maintenance burden
- Improves productivity with consistent power quality
- Offers scalable solutions for diverse industries
- Backed by experienced engineering and service support
Our Expertise
- Aviation
- Machine tool industry
- Food industry
- Automobile industry
- Oil and natural gas industries
- Chemical, petroleum, and pharmaceutical industries
- Textile industries
- Defence and research institutes sectors
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
