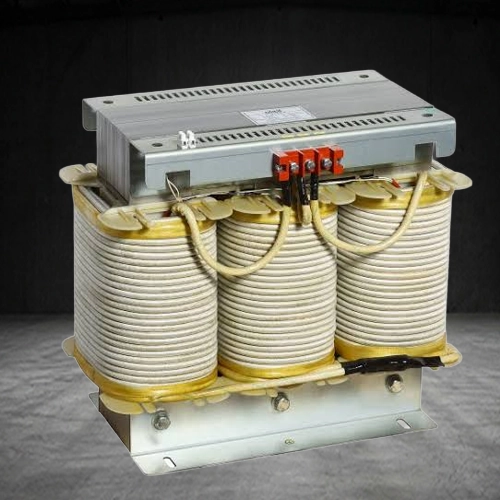

Shunt Reactor
Reactive Power Compensation for Voltage Stability
Our shunt reactors are designed to absorb reactive power, support voltage control, and improve transmission and distribution performance.
Key Features:
- High performance and application-specific engineering
- Reliable operation under varying input conditions
- Quality-focused manufacturing and rigorous testing
- Built for long service life and low maintenance
- Stable output to protect critical equipment
- Optimized energy efficiency for industrial use
- Customizable options for OEM and project requirements
- Supported by responsive service and technical assistance
| Specification | Details |
|---|---|
| Phase | Single Phase |
| Power | 400 Amp |
| Input Voltage | As Per User Requirement |
| Output Voltage | As Per User Requirement |
| Voltage Drop | As Per User Requirement |
| Frequency | 50Hz / 60Hz |
| Winding Material | Copper Wire |
| Coil Structure | Toroidal |
| Efficiency | 90% - 96% |
| No-Load Loss | < 2.5W |
| Voltage Strength | DC 2500V |
| Insulation Resistance | ā„ 500 MĪ© |
| Cooling Method | Natural Air Cooling |
| Operating Temperature | Up to +40Ā°C |
| Certifications | CE, RoHS & ISO Certified |
| Warranty | 12 Months |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Improves equipment reliability and process stability
- Reduces risk of downtime caused by power issues
- Supports safe operation of sensitive loads
- Designed for dependable performance in industrial environments
Business Advantages
- Extends asset life and lowers maintenance burden
- Improves productivity with consistent power quality
- Offers scalable solutions for diverse industries
- Backed by experienced engineering and service support
Our Expertise
- Aviation
- Machine tool industry
- Food industry
- Automobile industry
- Oil and natural gas industries
- Chemical, petroleum, and pharmaceutical industries
- Textile industries
- Defence and research institutes sectors
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note: We also offer customized solutions tailored to specific customer requirements.
