Split Phase Transformer
Efficient Voltage Conversion for Balanced Power Distribution
Volt Control System's Split Phase Transformers are designed to provide reliable voltage transformation and balanced power distribution for residential, commercial, and industrial applications. Engineered for efficiency, safety, and long-term performance, they ensure stable power delivery while supporting a wide range of electrical systems and equipment.
| Specification | Details |
|---|---|
| Phase | Single Phase to Split Phase |
| Capacity | Up to 1000 KVA |
| Primary Voltage | 1 Phase / 2 Phase: 110V, 120V, 208V, 220V, 230V, 240V, 380V, 415V, 440V, 460V, 480V |

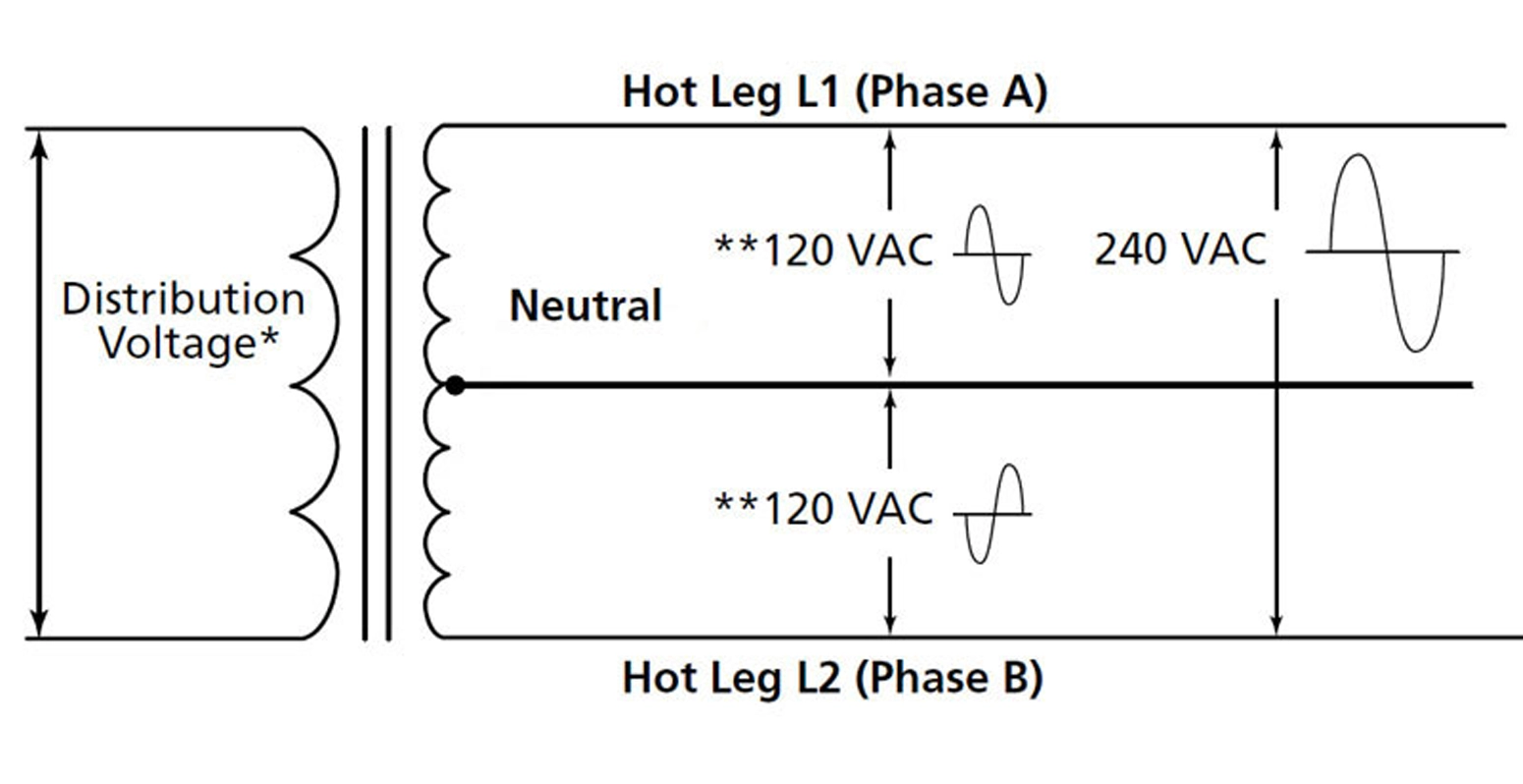

| Secondary Voltage | 120V / 240V AC (L1, L2, N, L+L = 240V, L+N = 120V) |
| Frequency | 50Hz / 60Hz |
| Winding Material | Aluminium / Copper Wire (Optional) |
| Efficiency | ≥ 95% |
| Insulation Resistance | ≥ 50 MΩ |
| Electrical Strength | 2000V AC / 1 Minute |
| Noise Level | ≤ 35 dB (At 1 Meter) |
| Insulation Grade | Class B (130°C), Class F (155°C), Class H (180°C) |
| Wiring Model | As Per User Requirement |
| Cooling Mode | Natural Cooling / Air Cooling |
| Overload Capacity | More than 1.2 Times Rated Load for up to 1 Hour |
| Induced Overvoltage Test | 125Hz / 800V / 1 Minute |
| Transformation Ratio | < 3% |
| Air Carrying Current | < 6% |
| Impedance Voltage | Approximately 6% |
| Total Losses | 10% |
| Operating Temperature | -15°C to +45°C |
| Humidity | ≤ 90% RH (Without Condensation) |
| Altitude | < 2000 m, Non-Corrosive Gas & Conductive Dust Free |
| Enclosure Protection Grade | IP20 (Optional: IP2X, IP3X, IP4X, IP5X, IP6X) |
| Certifications | CE & ISO Certified |
| Warranty | 12 Months |
| Standards Followed | ||||||
| IS5921/1249 | Copper cladbase material in electrical/electronic equipment's | |||||
| IS6297/2026 | Transformers and inductors. | |||||
| IS 6553 | Environmental requirements for semiconductors and Integrated circuits. | |||||
| IS4064 | Airbreak switches | |||||
| IS8828 | MCBs | |||||
| IS 9224 | HRC fuses | |||||
| IS1248 | Indicating instruments | |||||
| IS 6619 | Semiconductor Rectifier equipment safety | |||||
| IS613 | Copper busbars | |||||
| IS2959 | Contactors. | |||||
| IS3231 | Electrical relays | |||||
| IS13703 | Low voltage fuses | |||||
| IS4540 | Mono Crystal line Semi conductor rectifier assembly | |||||
| IS4237 | General requirements for switchgear and control switches | |||||
| IEC62040-2 | Electro magnetic conduction and interference. | |||||
Operational Advantages
- Improves equipment reliability and process stability
- Reduces risk of downtime caused by power issues
- Supports safe operation of sensitive loads
- Designed for dependable performance in industrial environments
Business Advantages
- Extends asset life and lowers maintenance burden
- Improves productivity with consistent power quality
- Offers scalable solutions for diverse industries
- Backed by experienced engineering and service support
Our Expertise
- Aviation
- Machine tool industry
- Food industry
- Automobile industry
- Oil and natural gas industries
- Chemical, petroleum, and pharmaceutical industries
- Textile industries
- Defence and research institutes sectors
* Due to VCS Policy of continuous improvement in product quality, some feature and Size of items may change.
Note:
- Transformer can only convert voltage and CANNOT convert frequency.
- Transformer CANNOT convert single phase voltage to 3 phase voltage.
- Input/output voltage, power rating and whether with shell of all transformers, can be customized according to your requirements.
